981/991/918 Titanium Caliper Piston Pucks

AQM 981/991 Titanium Caliper Piston Pucks


The Issue

We have found that the majority of enthusiastically driven/tracked GT4's and 991 GT3/RS's coming through our shop have failing or failed factory ceramic caliper piston pucks. Regardless of whether the brakes are factory Steel or PCCB calipers, there are factory ceramic pucks screwed to the face of the pistons that serve as a thermal barrier between the pads and the pistons, lessening the heat transfer to the fluid. Due to the intense heat and heat cycles from hard/extended braking, the ceramic pucks are becoming brittle and disintegrating. Early signs of this are cracking or chipping. Broken or lack of ceramic puck material may cause reduced braking effect and additional heat transfer through the pistons and into the fluid. If a large number of the ceramic pucks were to fail this could lead to significant braking issues. This problem is often overlooked during pad replacement, as technicians are not aware of the issue and are not checking for it. Unfortunately replacement ceramic pucks are not available, Porsche only offers complete replacement calipers. They will only replace the calipers under warranty if the car is running OE pads and rotors. Even if replacement calipers are installed, the issue will ultimately happen again. To prevent spending thousands on new calipers and to solve the issue once and for all....we developed a solution.

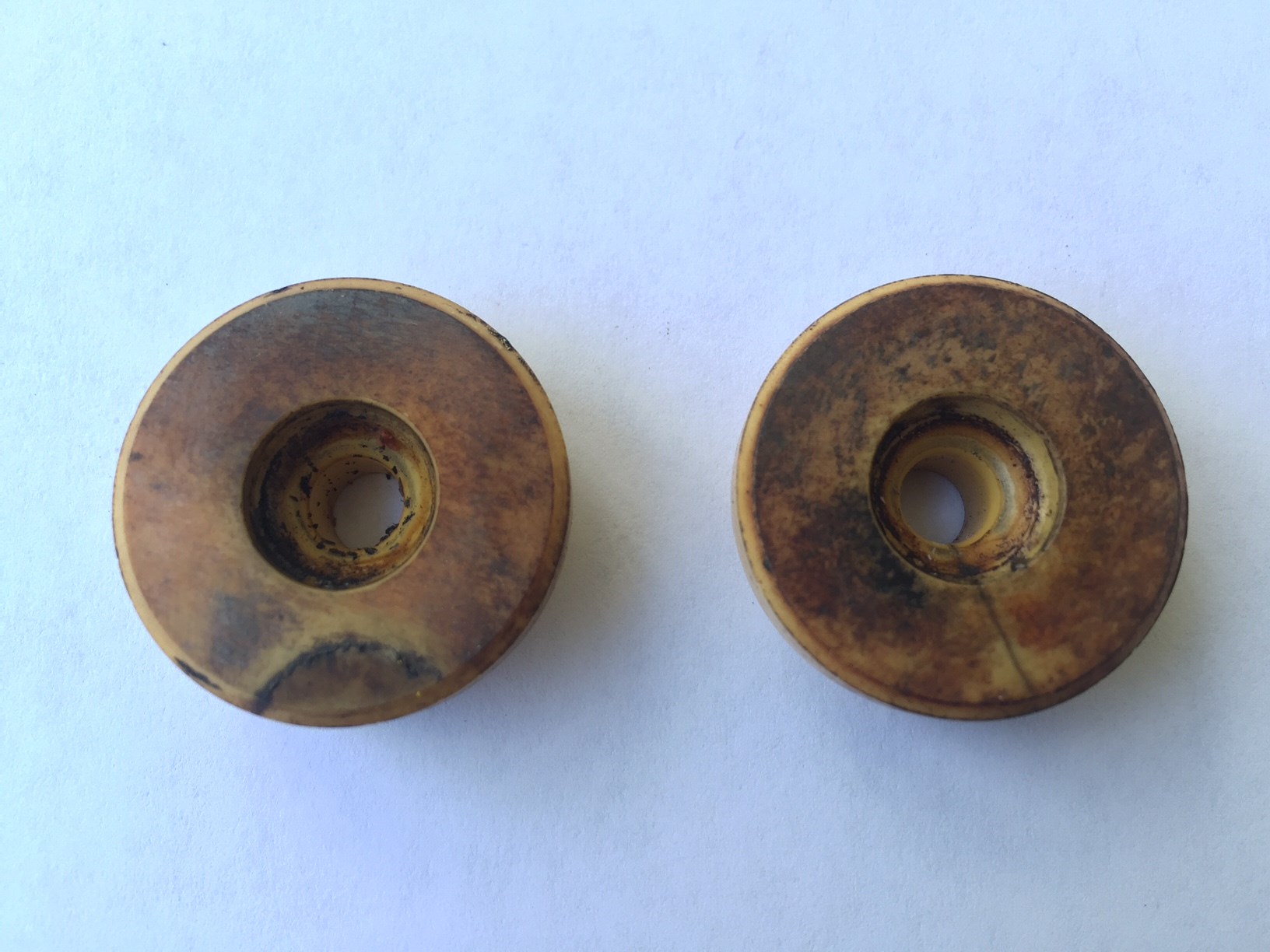

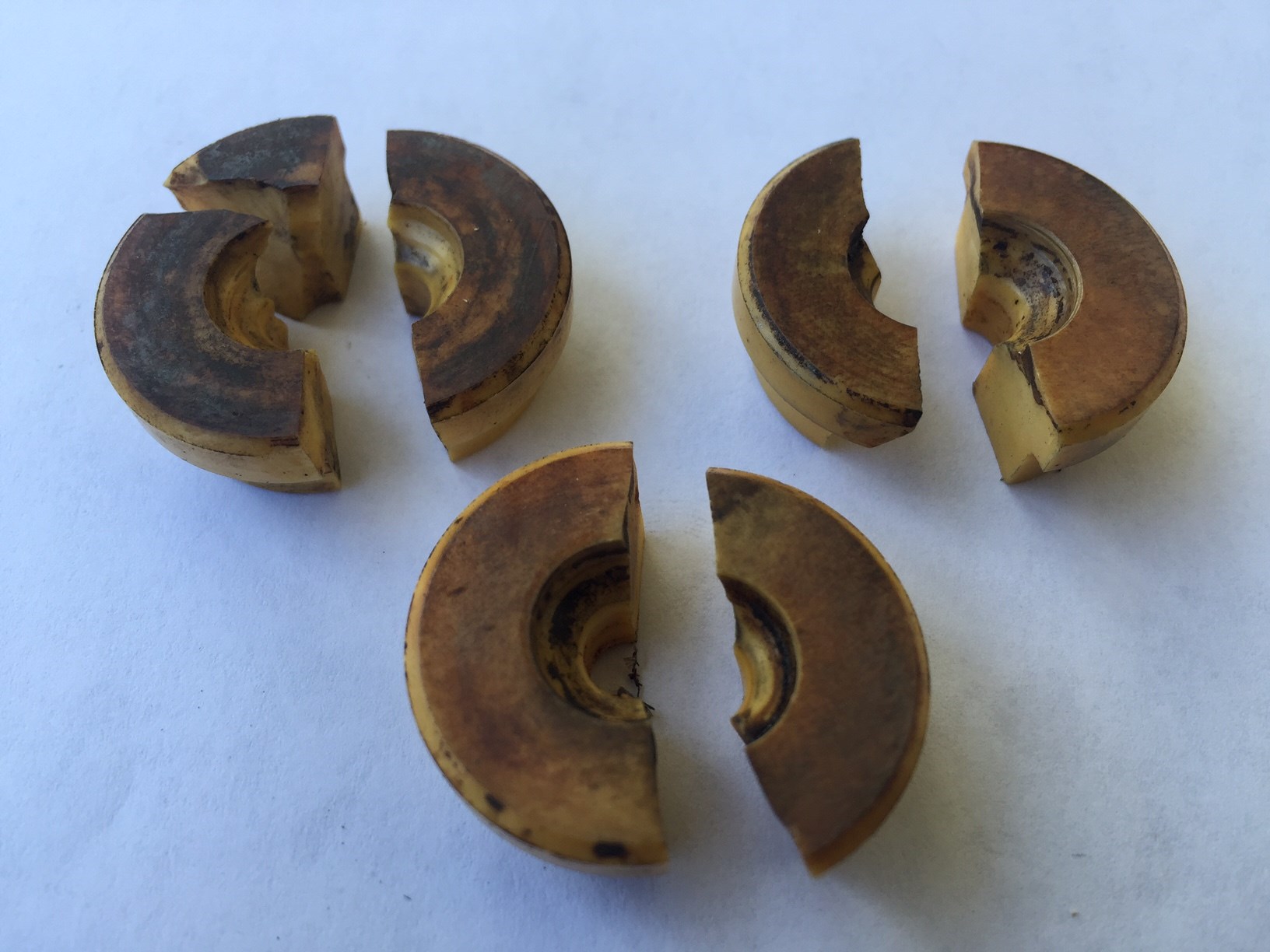

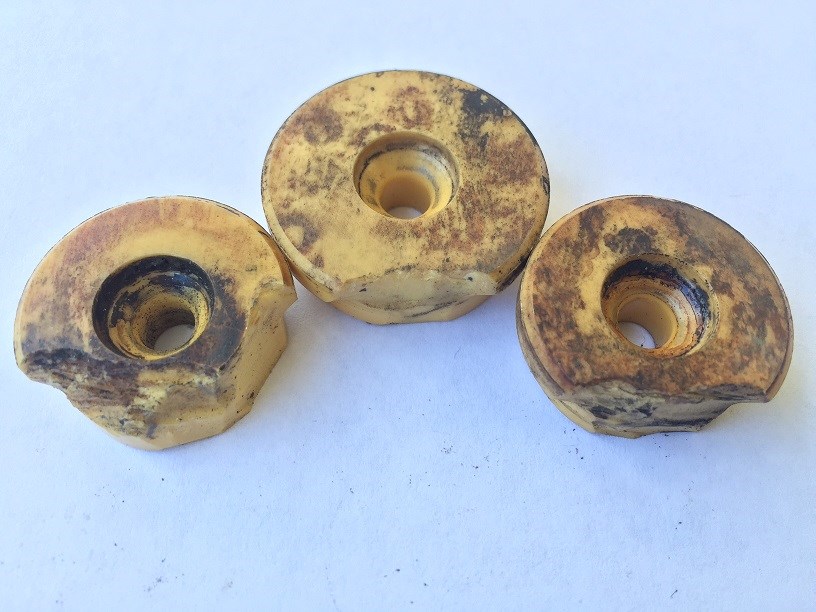

Cracked/Chipped/Broken


Our Solution


Titanium Piston Pucks. Titanium alloy proved to be the best solution, and is commonly used by professional race teams for brake caliper pistons. It is tough, light, and maintains a thermal barrier much greater than stainless steel and similar to ceramic, but with none of the drawbacks of ceramic becoming brittle and failing under repeated heat cycling. We have installed them on numerous GT4's and GT3's over the last year with no noticeable change in brake feel or fluid temperature. Our experience has shown this to be a long-term solution, eliminating the need for expensive and repetitive complete caliper replacements.

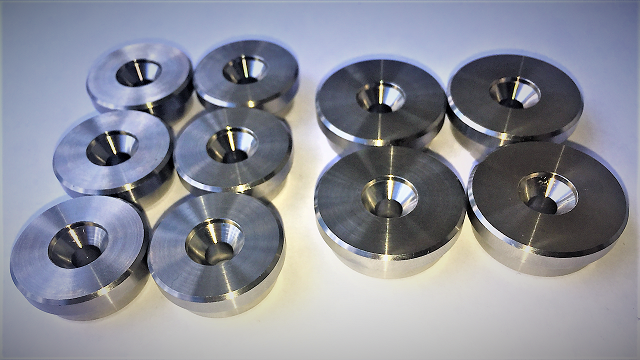

AQM Titanium Replacements


Fitment

  • 918 Spyder
  • 991.1/991.2 GT3
  • 991.1/991.2 GT3RS
  • 991.1/991.2 Turbo
  • 991.1/991.2 Turbo S
  • 991 911R
  • 981 GT4
?
Price

Front: $57.92 per piston puck (12 of these smaller front pucks required in a full set)
Rear: $58.75 per piston puck (8 of these larger rear pucks required in a full set)
Full Set: $1165.04


Placing an Order

While we are not yet set up for E-Commerce we will efficiency take your order via our contact information below. We would also love to take the time to learn a bit more about you, the goals you have, and offer our recommendations to meet them and maximize your driving experience. With few exceptions, as long as we aren't on track or taking a nap we are available : ) Shoot us a call, text or email 24/7!
